主頁 ? 產品中心 ? 其它產品 ? 微動開關Switch ? 發光輕觸開關 ? R590A ?

小型帶燈輕觸開關為集輕觸開關內置發光LED燈復合式開關，具有外觀絢麗色彩多樣化，可以符合波峰焊與回流焊，產品常規用于筆記本電腦，家電，電子電器控制按鈕功能。
帶燈輕觸開關R590A

•  Rating：12VDC 50mA
•  Contact Resistance：100mΩ Max
•  Insulation Resistance：100MΩ min(250VDC)
•  Dielectric Strength：250VAC 50/60Hz FOR 1 min
•  Operating Force：160±50g/250±80g
•  Electric Life：100,000 cycles
•  Operating Temperature Range：-20℃ ~ + 70℃
•  Travel：0.25±0.1 mm

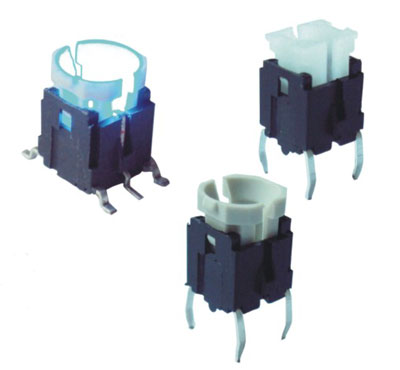

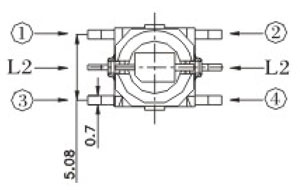

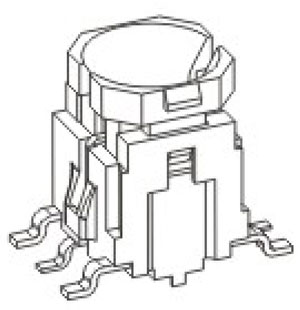

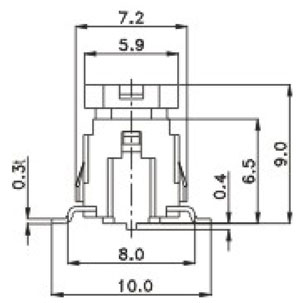

 帶燈輕觸開關R590A實拍圖   帶燈輕觸開關R590A結構圖    開關R590A結構圖    R590A結構圖



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Electric Life Operating Temperature Range Travel PDF下載
R590A-1L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590A-1 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590A-2L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590A-2 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590A-3L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590A-3 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590A-4 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590A-3ML(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590A-3M 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590A-1G 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
